Filters, Diplexer and Triplexer

EMTS Telecom Services Ltd. offers several models of diplexer filters for the wireless communication markets.

Our product range includes a wide range of solutions for Wireless Base Stations and for coaxial distributed in-building cellular network or DAS. The advanced EMTS technology  has a very broad frequency range with minimal loss for maximum flexibility.

Our products has been designed to be small and lightweight, using passive (Cavity and Dielectric) techniques to ensure minimal loss and very high reliability.

The EMTS products are well known in the market with its remarkable low PIM (Passive Inter Modulation) characteristics. The units are available with both N-Type , 7/16 or SMA connectors.
Using modern design technologies help us to provide a remarkable performance of signal rejection and  isolation, insertion loss & very low VSWR.

Our products support frequency range of 150-3700MHz with verity of wireless technologies such as PMR, LMR, TETRA, APCO25, iDEN, CDMA, GSM, WCDMA (3G), LTE (4G) and WiMAX.


Difference between Diplexerand Duplexer

Lets avoid some confusion between diplexer and duplexer. Diplexers  separate or combine different bands such as GSM, DCS, PCS, PCS, LTE 4G or UMTS and typically use suspended substrate type of filters, while Duplexers separate transmit and receive within the same band, as those channels are very close to each other and hence requirecavity type of filters.

This type of filer is comparatively bigger in size and very expensive. Duplexers are more challenging to meet the low PIM which is required for the system integrity.

RF diplexers type consists of regular or suspended strip line techniques. Suspended Substrate (SSS) filter technology enables highfrequency broadband filters to be realized utilizing elliptical responsesfor excellent close-in rejection. The diplexers also sometimes known as “cross-band” coupler as it use signals from several signal bands. The most important performance specifications that need to be considered when selecting RF diplexers or triplexers are:

signal rejection or isolation over transmission signal, insertion loss and Voltage Standing Wave Ratio (VSWR).


In the case of an in-building Distributed Antenna System (DAS), which could easily be configured to use three or even four feeds to different sections of a building, a passive combiner system can be designed to take the advantages of Diplexers or Triplexers in a ‘Lossless’ configuration.

The above Figure 1 shows how nine inputs can be combined onto three feeds with practically minimal loss. In practice, of course the number of inputs is rarely such a convenient number, but with careful selection of hybrid matrices and the useof diplexers and triplexers, can minimize the loss and provide adequate input isolation at a reasonable price.

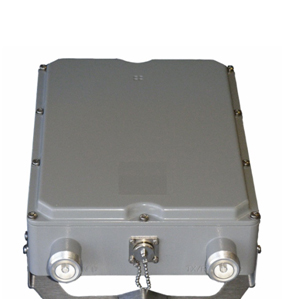

Base Station / DAS  High Selectivity - High Power Band Pass Filter

•  Advanced Cavity Design
•  Full band, receive only or block selective types
•  High Isolation
•  Very good VSWR performance
•  Excellent PIM performance
•  Compact design Extremely low insertion loss
•  Easy installation supporting both LTE 4G and WCDMA 3G technologies
•  Exceptional reliability and environmental protection



Base Station (BTS) and DAS band selective filters

Base Station (BTS) and DAS band selective filters
  • Multiple types from 450 MHz up-to 3500 MHz
  • Designed to pass the full band uplink and downlink and to reject out of band interferences and also to minimize the interferences to neighbornetworks.
  • Receive only types to minimize the uplink noise.
  • Advanced Cavity and dielectric design guarantee minimum insertion loss, high Isolation and excellent PIM performance.
  • Easy installation supporting both LTE, WCDMA GSM and CDMA technologies
  • Exceptional reliability and environmental protection
BPF-700ABC-70H

High Selectivity 700MHz LTE (Block ABC) Band Pass Filter

BPF-FDD3500-70H

High Selectivity 3500MHz LTE Band Pass Filter

BPF-TDD2600-70H

High Selectivity 2600MHz TDD IMT-E Band Pass Filter

BPF-FDD2600-70H

High Selectivity 2600MHz FDD IMT-E Band Pass Filter

BPF-UMTS2100-70H

High Selectivity 2100MHz UMTS Band Pass Filter

BPF-PCS1900-70H

High Selectivity 1900MHz PCS Band Pass Filter

BPF-DCS1800-70H

High Selectivity 1800MHz DCS Band Pass Filter

BPF-AWS1700AI-70H

High Selectivity 1700 / 2100MHz AWS Extended Band Pass Filter

BPF-AWS1700AF-70H

High Selectivity 1700 / 2100MHz AWS Band Pass Filter

BPF-J-1700-70H

High Selectivity 1700MHz Japan UMTS Band Pass Filter

BPF-PDC-1500U-70H

High Selectivity 1500MHz Japan PDC upper Band Pass Filter

BPF-PDC-1500L-70H

High Selectivity 1500MHz Japan PDC lower Band Pass Filter

BPF-925-70H

High Selectivity 900MHz Band Pass Filter

BPF-850S-70H

High Selectivity 850MHz SMR Band Pass Filter

BPF-850-70H

High Selectivity 850MHz Band Pass Filter

BPF-800E-70H

High Selectivity 800MHz LTE (EU) Band Pass Filter

BPF-800-JU-70H

High Selectivity 800MHz Japan Upper Band Pass Filter

BPF-800-JL-70H

High Selectivity 800MHz Japan Lower Band Pass Filter

BPF-700D-70H

High Selectivity 700MHz LTE (Block D) Band Pass Filter

BPF-700C-70H

High Selectivity 700MHz LTE (Block C) Band Pass Filter

Base Station (BTS) and DAS Diplexers and Cross Band Couplers

Base Station (BTS) and DAS Diplexers and Cross Band Couplers
  • Multiple types from 700 MHz up-to 2100 MHz
  • Designed to Split or to combine between low band and up band into one antenna or one output, Cavity Design, designed for co-siting purposes, Supports DC/AISG Bypass.
  • Available as a single unit for DAS, or a dual unit to support BTS tower structure.
  • Very Low Passive Intermodulation(PIM) with Extremely low insertion loss, High out of band rejection level, Supporting GSM, LTE and WCDMA
  • IP66 enclosure - Suitable for indoor or outdoor applications, Wall or mast mounting, Exceptional reliability and environmental protection.
DB-X-CBC-7-17

700-1700 MHz Diplexer CBC Dual Band Combiner

DB-X-CBC-7-19

700-1900 MHz Diplexer CBC Dual Band Combiner

DB-X-CBC-8-18

800-1800 MHz Diplexer CBC Dual Band Combiner

DB-X-CBC-85-19

850-1900 MHz Diplexer CBC Dual Band Combiner

DB-X-CBC-85-21

850-2100 MHz Diplexer CBC Dual Band Combiner

DB-X-CBC-9-18

900-1800 MHz Diplexer CBC Dual Band Combiner

DB-X-CBC-9-21

900-2100 MHz Diplexer-CBC Dual Band Combiner

DB-X-CBC-18-21
1800-2100 MHz Diplexer CBC Dual Band Combiner
DI-900-1800-DD-80
Uplink - Downlink 900-1800 MHz 4 port Diplexer
TB-X-CBC-8-18-26

800-1800-2600MHz Triplexer CBC Triple Band Combining Unit

Base Station (BTS) and DAS Triplexers and Cross Band Couplers

Base Station (BTS) and DAS Triplexers and Cross Band Couplers
  • Multiple types from 700 MHz up-to 2100 MHz
  • Designed to Split or to combine between three bands into one antenna or one output, Cavity Design, designed for co-siting purposes, Supports DC/AISG Bypass.
  • Available as a single unit for DAS, or a dual unit to support BTS tower structure.
  • Advanced Cavity and dielectric design guarantee minimum insertion loss, high Isolation and excellent PIM performance.
  • Easy installation supporting both LTE, WCDMA GSM and CDMA technologies, Exceptional reliability and environmental protection.
TB-X-CBC-7-17-19

800-1800-2600 MHz Triplexer CBC Triple Band Combining Unit

TB-X-CBC-85-18-21

850-1800-2100 MHz Triplexer CBC Triple Band Combining Unit

TB-X-CBC-9-18-21

900-1800-2100 MHz Triplexer CBC Triple Band Combining Unit

EMTS-AC-900-2B

900 MHz Cavity Antenna Combiner

EMTS-AC-1800-2B

1800 MHz Cavity Antenna Combiner

EMTS-AC-2100-2B

2100 MHz Cavity Antenna Combiner

CBC-130-870-1700-2700

130-2700 MHz Diplexer Cross Band Coupler (CBC)

CC-U-410430

410-430 MHz UHF High power cavity combiner
