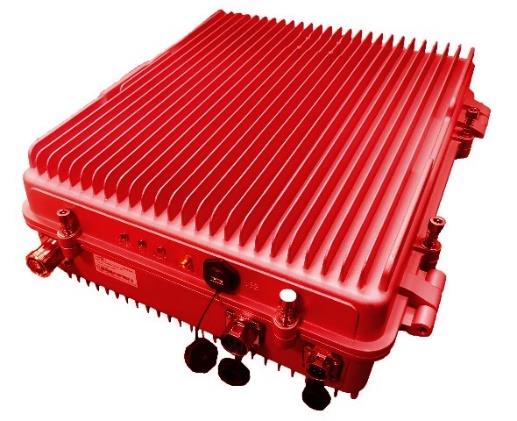

Band Selective Bi-Directional Amplifier

SKU: PR-800-33W85

The EMTS Telecom Services DMR channel selective Power Repeater / Bi-Directional Amplifier (BDA)

provides an excellent solution for in-building applications for poor signal coverage or outdoor coverage

extension. Typical applications are Airports, Tourism regions, tunnels, factories, mining districts, villages,

Hotels, exhibition centers, basements, shopping malls, offices, parking lots, and others. With the BDA, the

DMR/TETRA/ P25 operator can quickly expand a base station's service area by filling in coverage holes

caused by terrain, buildings, or tunnels. Easy installation, lightweight design, and very friendly GUI make the

EMTS repeater easy to use and install. Its Band-selective functionality enables amplifying only the selected

Bi-directional Amplifier (Repeater) fully compliance with DMR and CE standards
IP65 enclosure for indoor or outdoor installations
Comply with TETRA /Apco-25 and DMR/LMR standards and system requirements
Utilizes advanced filtering technology to support out-of-band system requirements
Provide quick RF coverage extension to LMR/DMR/TETRA/P25 Base-Station
Band-selective configuration according to the standard or customized bands
Optional channel selective type with up to 8 DSP filters of 25KHz each
Metal cavity filter technology allows wider receiving/transmitting separation, higher stability, and lower noise figure
Intelligent design provides auto amplitude compensation with a built-in ALC function
USB port for local supervision, with built-in 3G/4G modem for remote management and configuration and mobile app

Technical Specifications

Technical Specifications
Electrical Specifications (Uplink)	Downlink
Frequency Ranges (MHz) (806-816 MHz)	851-861 MHz
Bandwidth	Band Selective type according to the above list of standard frequencies or customized band per customer definition (Optional channel selective with up to 8 channels)
Gain	83dB(±3dB)
Gain Adjustment Range	30 dB in 1 dB step
Pass Band Ripple	≤3dB
Composite Output Power (25dBm (±1 dB))	33 dBm (±1 dB)
AGC Range	30 dB
VSWR	1.5:1
Noise Figure@ Max Gain	≤4.5 dB
Spurious emissions	≤-36dBm (9KHz to 1GHz); ≤-30dBm (1GHz to 12.5GHz)
Third-order Inter-Modulation	≤ -45dBc / 30kHz (measured under rated output power)
Group Delay band selective mode	5 μs
External connection
Connector	N-F / 50 ohms
Alarm Detection	HPA, LNA, TEMP, PSU, Digital IF module, Local LED display, external Dry Contacts
Local Alarm and Setting	Through RJ45
Remote management and alarms	Via 4G modem or dial-up modem (optional)
Power Supply	Standard – 220V AC Power supply Optional –48 or 24V DC or Dual – 220V AC & -48V DC With an automatic switchover
Power Consumption	<150 watts
Environmental
Operating Temperature Range	-30 to +55 °C
Cooling	IP67
Environmental Sealing	Up to 95% (non-condensing) comply with ETSI EN 300 019-2-4
Operating Humidity	447357171mm
Size (W x H x D)	18Kg
Comply with Standards
Safety	EN60950-1, EN 50385
EMC	EN 301 489-1, EN 301 489
Radio	EN 302 561
DMR	ETSI TS 101 789-1 and EN 303 035-1 and EN 300 394-1
CE	Comply
Networks.
