SKU: PR-78-30W80

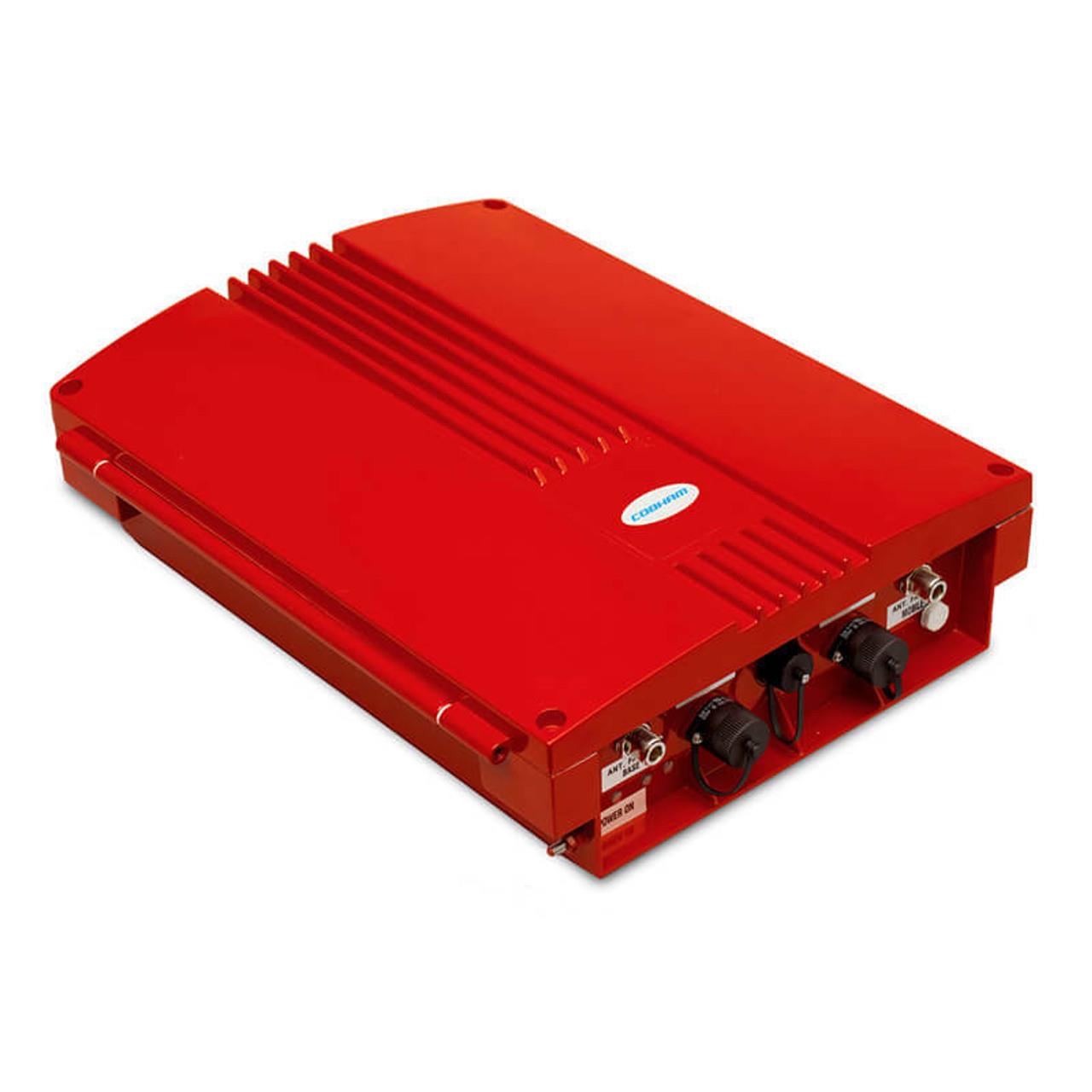

Dual Band 700-800MHz Power Repeater

Download Datasheet (PDF)

The EMTS Telecom Services 700-800MHz, 30dBm Powe- Repeaters provide an excellent solution to the problem of poor signal coverage for Public Safety networks. EMTS's proven amplifier technology is designed to extend coverage for Public Safety in-building that meets all code requirements, including FirstNet frequencies to advanced noise cancellation, oscillation avoidance, and automated filter selection that guarantees the best performance. This dual-band, dual-mode repeater has a robust, flexible design that simplifies traditional configuration issues and addresses today's interference and performance challenges. Easy installation, lightweight design, and easy usage make our 700-800MHz Mini Repeater a cost-effective and practical solution for extending signal coverage.

Key Features

  • Dual Band configuration 700 and 800 MHz DMR/LMR bands
  • A digital module for block selectivity and multiple block operation
  • Superior RF performance, high efficiency
  • Downlink 30dBm composite power
  • High Gain and Low Noise Figure
  • Intelligent design, with built-in ALC function and Isolation preventing
  • Designed to meet APCO 25, DMR, and LTE standards
  • IP65 enclosure, 4G modem for remote management and alarms
Technical Specifications
Technical Specifications
Parameters
Downlink Uplink
Frequency Range (Band 1) 758-775 MHz / 788-805 MHz
1
Band 2 (851-869 MHz) 806-824 MHz
2 (Composite Output Power) 24dBm / 30 dBm
3 (Max Gain) 80±3dB / 80±3dB
4 (Gain setting Range) 30dB
5 (Gain setting Step) 1dB
6 (Noise Factor) ≤6dB / ≤6dB
7 (Max NO Damage Input Power) -10dBm / -10dBm
8 (Automatic Level Control(ALC)) 25 dB
9 (Pass Band Ripple) +/- 1.5 dB
10 (VSWR) ≤2:1
11 (Time Delay) ≤5μs
In-Band ≤-36dBm/3kHz or ≤-60dBc/3kHz
Spurious
12 9kHz~1GHz:≤-36dBm
Emissions Out of Band 1GHz to 12.75GHz:≤-30dBm
In-Band ≤-45dBc/30kHz
13 (IMD) 9kHz to GHz:≤-36dBm Out of Band 1GHz to 12.75GHz:≤-30dBm
14 (Power Consumption) ≤120 W
15 (RF Connection Mode) N/F,50Ω
16 (Power Supply Mode) AC 220V±20%,50±5Hz
17 (Operating Temperature) -25℃ to +50℃
18 (Enclosure) IP65
19 (Size) 330 x 280 x 90 mm
