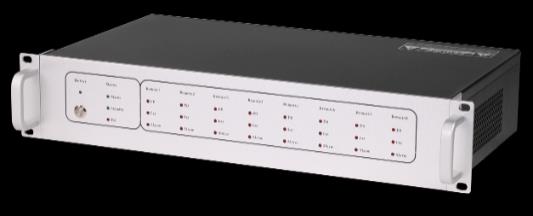

Quad-Band Fiber Optic Repeater Master Unit
The EMTS Telecom Services Ltd. Fiber Optic Repeater System consists of a master and remote unit that supports 900/1800/2100/2600MHz for GSM, WCDMA, and LTE. The master unit (MU) converts the RF signals to optical, and this can be connected to remote units (FRU) via Fiber Optical Cable. The remote unit converts the optical signals to the original RF signal. The EMTS Multi Band Fiber Optic Repeater system is designed to solve problems of weak mobile signal in the place that is far away from the Base Station (BS) and has a fiber optic cable network underground or can be deployed, Ideal for expanding signal coverage or fill the signal blind area where wireless signals are weak or unavailable for Outdoor, Airports, Tunnels, Mining, Hotels, and Enterprises, The system consists of two parts: Master Unit (MU) and Remote Unit (RU). The Master unit captures the BS signal via direct coupler closed to BS or via RF Repeater to pick up the signal from the air (optional). Either Master Unit can be configured and controlled through physical tethering or remotely using the simple, easy to use web interface.
Key Features
- Supports wireless Services at 900/1800/2100/2600MHz FDD bands for multi-operator
- Support 2×2 MIMO, Tx/Rx control and alarm messages can be transmitted via one fiber optic cable, MIMO signals via another fiber optic cable
- Comply with GSM / WCDMA / LTE standards
- One Master Unit can support up to 4 RUs to maximize utilization of fiber optic cable(A star topology is supported between MU and RU
- Ideal for expanding signal coverage or fill the signal blind area where wireless signals are weak or unavailable for Outdoor, Airports, Tunnels, Mining, Hotels, and Enterprises
- Suitable for large-scale Installations, Low Optical Transmission Loss
- Stable and improved signal transmission quality
- USB port provides a link to a notebook for local supervision or IP Based NMS(Network Management System) that can remotely supervise repeater’s working status and download operational parameters to the repeater Via Ethernet EMTS Telecom Services Ltd. offers a comprehensive portfolio of enhanced coverage solutions for the Wireless Networks, building coverage. Regardless of the technology or frequency, EMTS can provide customized coverage solutions that address any combination of unique and complex network needs for the Wireless Networks
